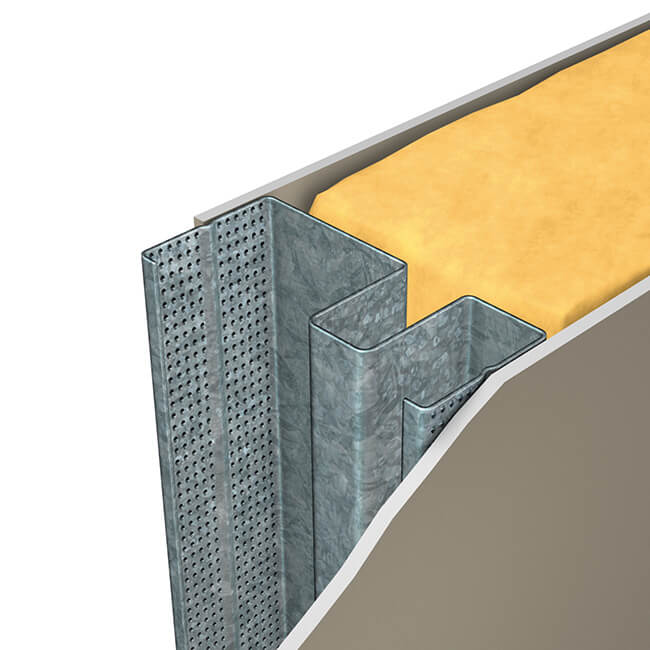

Quiet Stud® Acoustic Wall System

Noise is actually vibration. A normal stud conducts the vibration across its web, and sound is transmitted via anything that reacts to it by vibrating. The Rondo QUIET STUD® is overall bigger in surface area than a standard wall stud. Therefore, the sound (vibration) has further to travel and tends to weaken in intensity across the wall, resulting in a more acoustic efficient wall system.

Its unique design, combined with appropriate lining board systems, forms an effective buffer against unwanted noise to provide a cost-effective solution to acoustic control provisions.

PRODUCT FEATURES

  • What You'll Like About Rondo QUIET STUD® Acoustic Wall System

    You get more floor space, less noise and less installation costs with Rondo QUIET STUD®.

    Fast and simple to install, its smaller footprint means more usable floor space. Not only that, the installation method is practically the same as standard drywall construction, so you’ll have lower installation costs and a virtually fail-safe acoustic wall-system

  • What is Rondo QUIET STUD® Suitable For?
    • Acoustic control provisions
    • Acoustic wall system
    • Fire Rated and Non-fire rated Systems
    • Inter-tenancy walls if discontinuous construction is not required (popular in apartments)
  • Advantages
    • Achieves superior performance in a smaller footprint, leaving more floor space
    • Quick installation as Contractor uses standard steel stud drywall installation practices, resulting in lower labour costs
    • Utilises standard Rondo 92mm top and bottom wall tracks
    • Standard 92mm wide stud system
    • Bell-mouthed service holes for electrical cabling
    • Studs feature a wider 45mm fixing flange
    • Studs are designed for a friction fit into top & bottom wall track
  • Projects That Have Benefited From The Use Of Our Rondo QUIET STUD®

    The Rondo QUIET STUD® system has been used in a range of projects, including apartments, hotel refurbishments, schools, universities, hospitals and offices.

    At the spectacular Abian Apartments in Queensland, Australia and Quay Wharf Apartments in New Zealand, Rondo QUIET STUD® was used as an effective buffer against unwanted noise between the inter-tenancy walls.

Resources

DESIGN MANUAL

Quiet Stud® Acoustic Wall System

Click below for the Design Manual

Download

PRODUCT DATA SHEET

Quiet Stud® Acoustic Wall System

Click below to download our Product Data Sheet:

Download

PROJECTS

Rondo Projects

Click below to view our projects:

VIEW RONDO PROJECTS

CAD FILES

(NZ) Quiet Stud® Acoustic Wall System CAD FILES

Assisting you with the design process, we’ve put together a library of DXF files for most of our products.

DOWNLOAD INDIVIDUAL CAD FILES

Components
